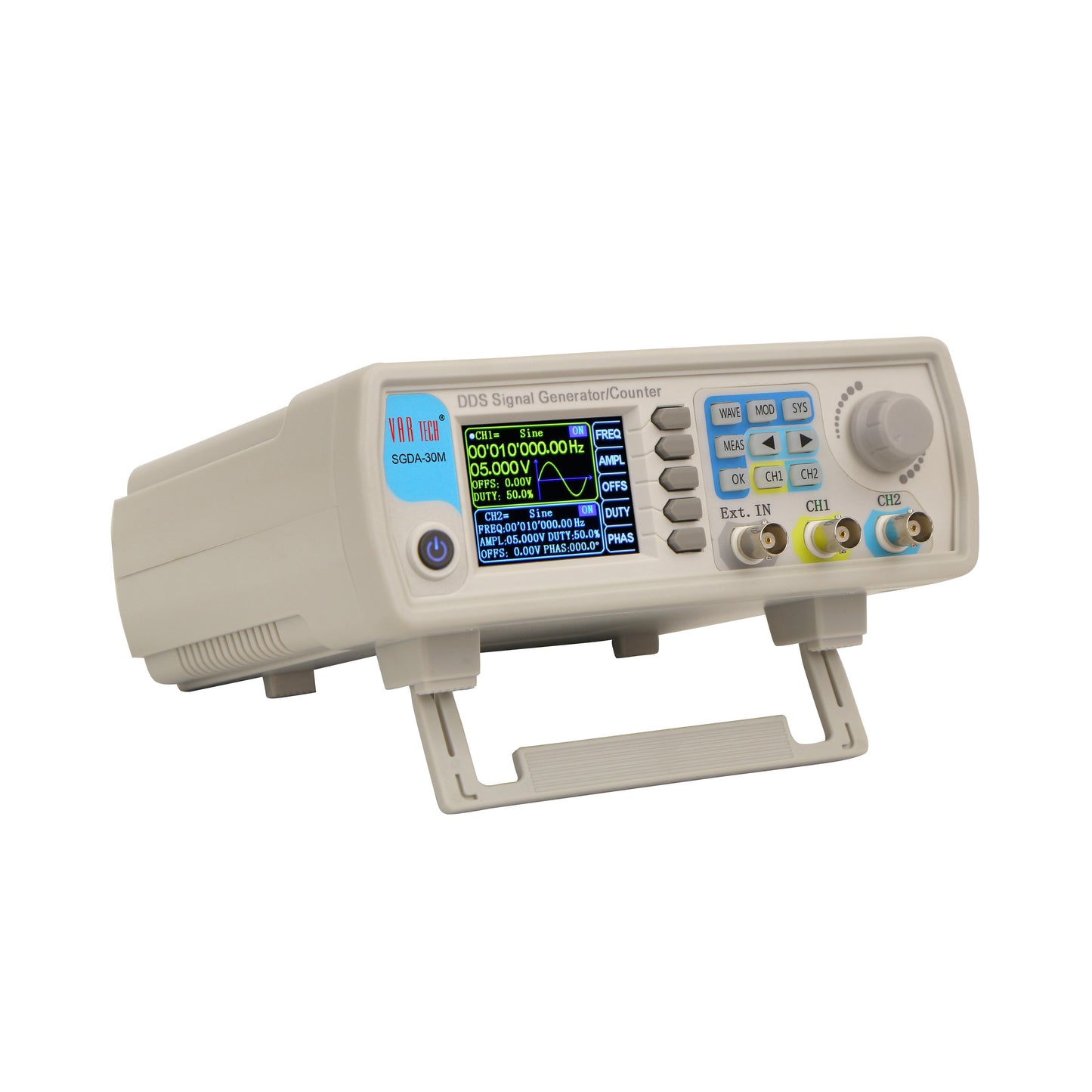

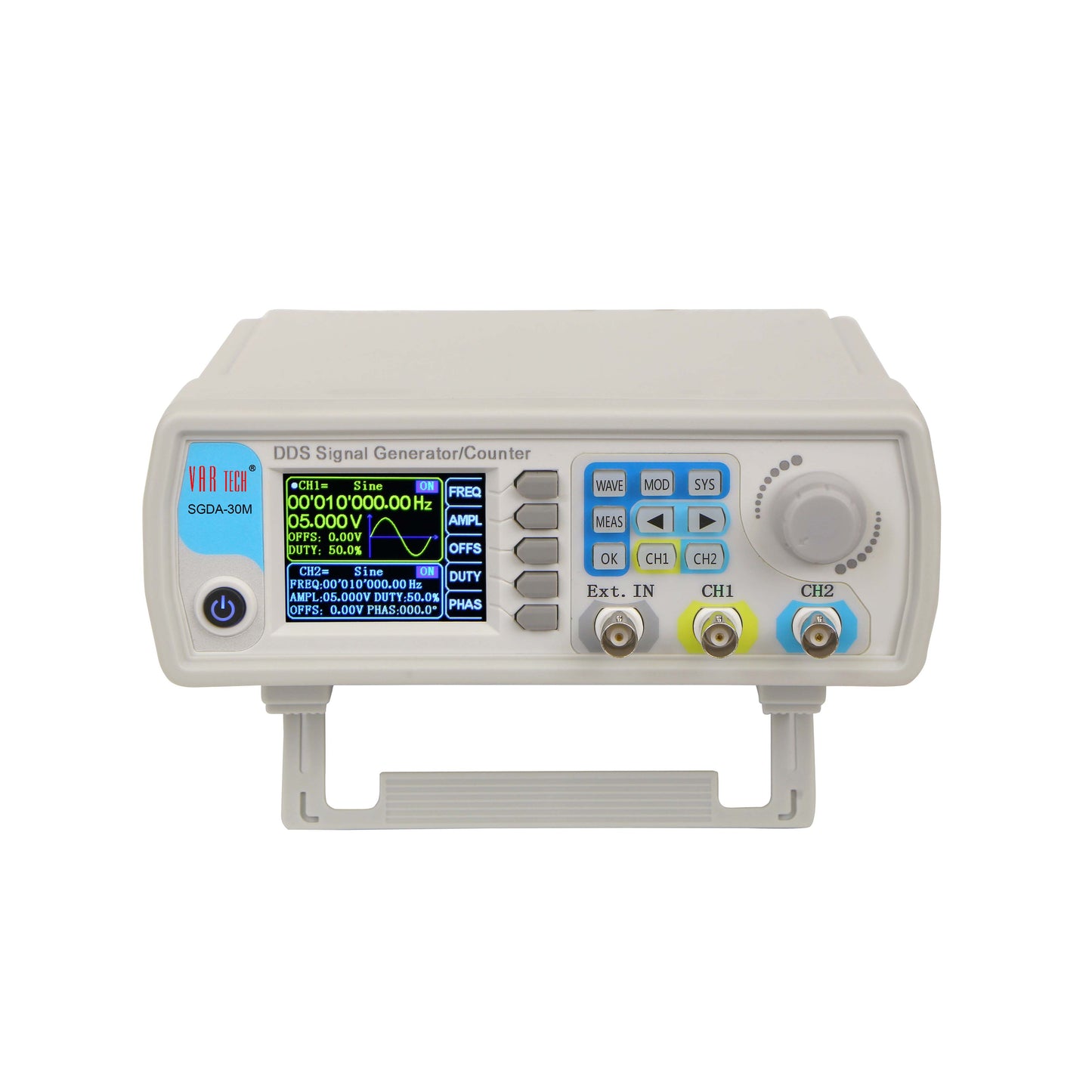

SGDA 30M 30 MHz Function Generator

SIGNAL GENERATOR (DDS, FUNCTION), 30 MHz Dual Channel, 2.4” TFT Color LCD Display, with USB Interface.

• Frequency Output (0.01μHz Resolution) : 30 MHz - Sine, Square & Triangle. 6 MHz - Pulse, TTL & Arbitrary.
• Output Channels : 2 Channels
• Sampling Rate : 266 MSa/S (Vertical Resolution - 14 Bits)
• Waveforms : Sine, Square, Pulse (Adjustable Duty Cycle, Precise Adjustment of Pulse Width & Period), Triangular Wave, Partial Sine Wave, CMOS Wave, DC Level (Set DC Amplitude By Adjusting Offset), Half Wave, Full Wave, Positive Staircase Wave, Anti-Ladder Wave, Noise Wave, Exponential Rise, Exponential Drop, Multisonic Wave, Symplectic Pulse, Lorenz Pulse.
• 60 Arbitrary Waveforms
• Amplitude : Sine Wave Frequency : ≤ 10MHz : 2mVpp ~ 20Vpp. Frequency ≥ 10MHz : 2mVpp ~ 10Vpp.
• Square Wave & Triangle Wave Frequency : ≤ 10MHz : 2mVpp ~ 20Vpp. Frequency ≥ 10MHz : 2mVpp ~ 5Vpp.
• Freq. Counter (Multi function) : Frequency Range : 1 Hz ~ 100 MHz.
• Other Functions / Facilities : D.C. Offset, Sweep (Lin. / Log.), Burst & Settings Store/Recall
• Display : 2.4” TFT LCD

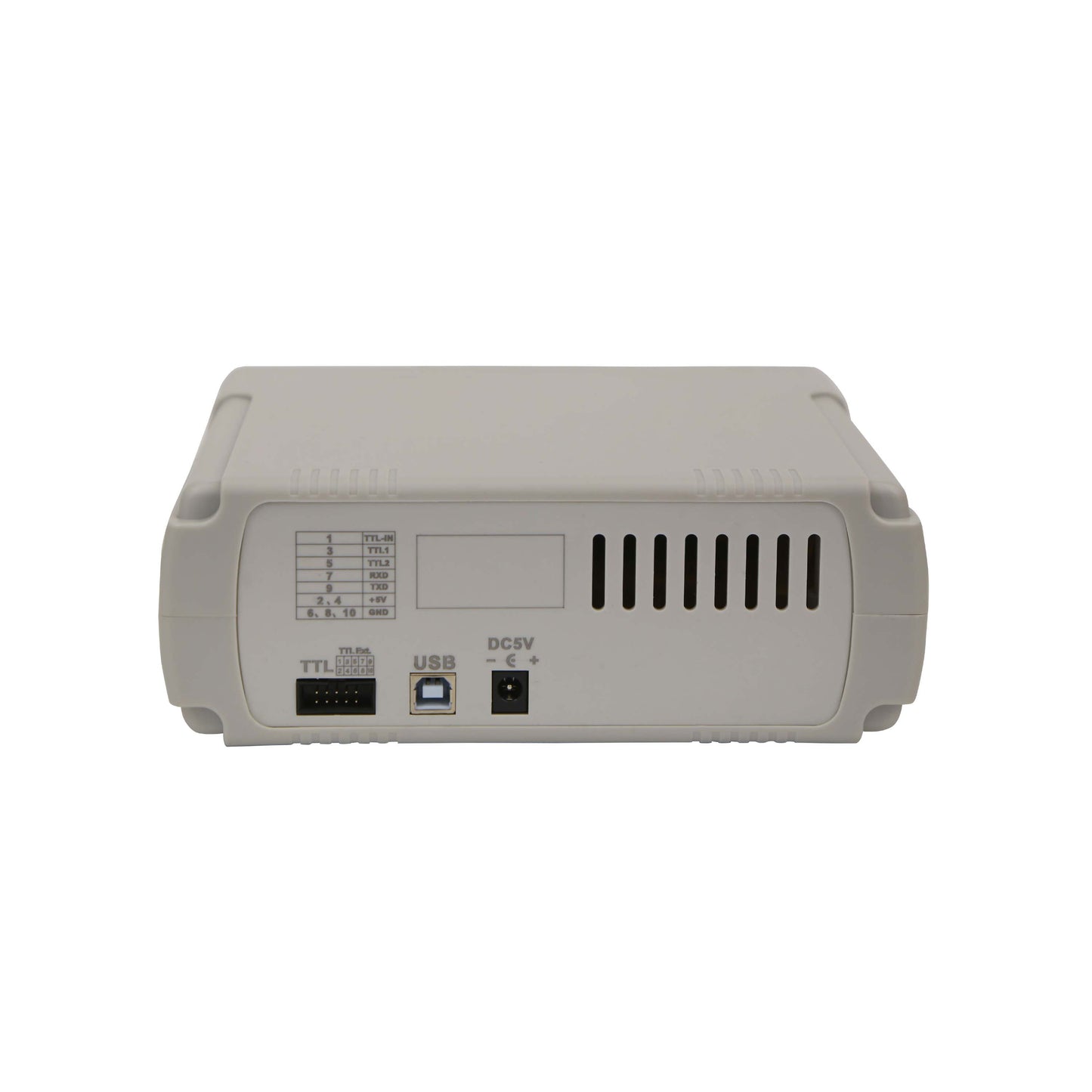

• Interface : USB & TTL Ext

Accessory : Power Amplifier Modules

1. SPA-100K (100 KHz)
2. SPA-10M (10 MHz)
